LATEST NEWS

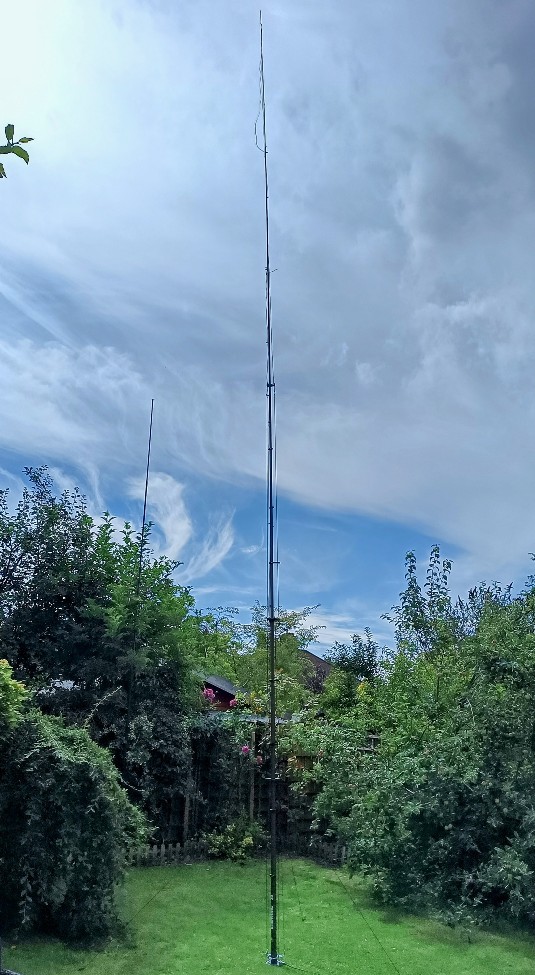

DX Commander setup - July 2024
Multi-band antenna setup, with elements for 10m, 12m, 15m, 17m, 20m, (30m) and 40m.

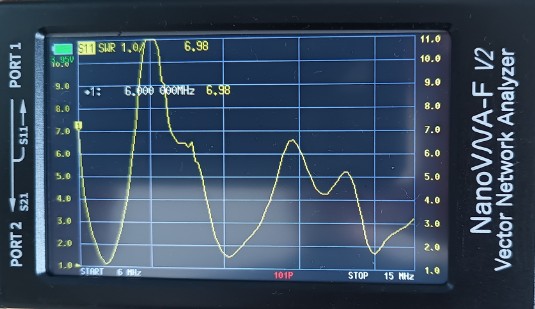

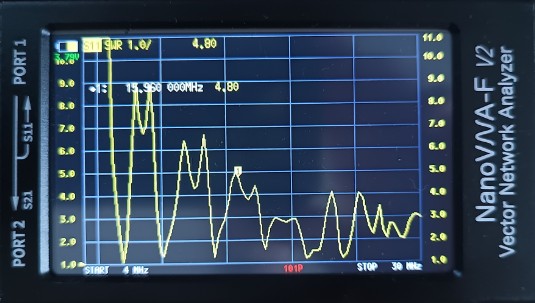

Nano VNA traces shown below from 6 to 15 MHz and 4 to 30 MHz.
The BTV antenna (lower) also covers 30m so I'll probably extend the
DX Commander 30m element to cover 60m as an inverted-L.
16 radials also prepared,ranging from 3 to 5 metres long.
The traces below won't be totally accurate but I plan to tune the
antenna again when it's in situ.
7th July 2024.

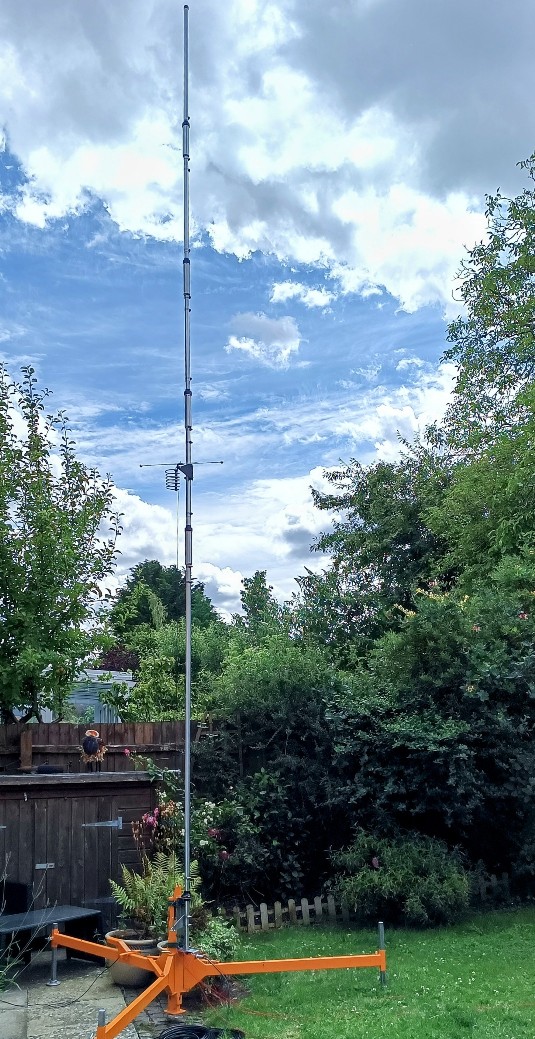

Mulit-band Vertical BTV antenna assembled and being tested.
Temporarily supported on Clark Pump-Up mast tripod base.
(I am obviously not taking the tripod mast base to Pitcairn)
26th June 2024.
Final purchase made (of Ultraflex cables)
Only two months left to go...
9th April 2024.
Flights booked (Air France and Air Tahiti)
Boat to and from Pitcairn booked
Accommodation on Mangareva and Pitcairn booked
Please use the last page (contact and comment) to make suggestions!
